RET-25

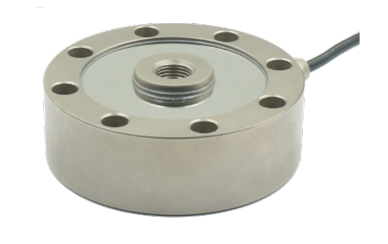

产品图片
PRODUCT IMAGE

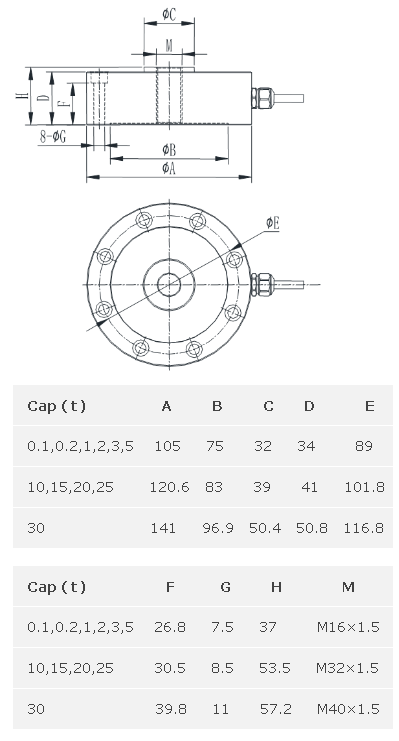

安装尺寸
MOUTING DIMENSION
特点与用途
FEATURES & APPLICATIONS轮辐式传感器
合金钢/不锈钢材料
拉压双向
用于试验机,汽车衡,料斗秤,各种工业称重系统等
可定制其它量程
Pancake type load cell
Alloy steel / stainless steel
Tension and compression application
Mainly used for testing machine , truck scales,hopper scale and
industrial measuring systemCustomize other capacity

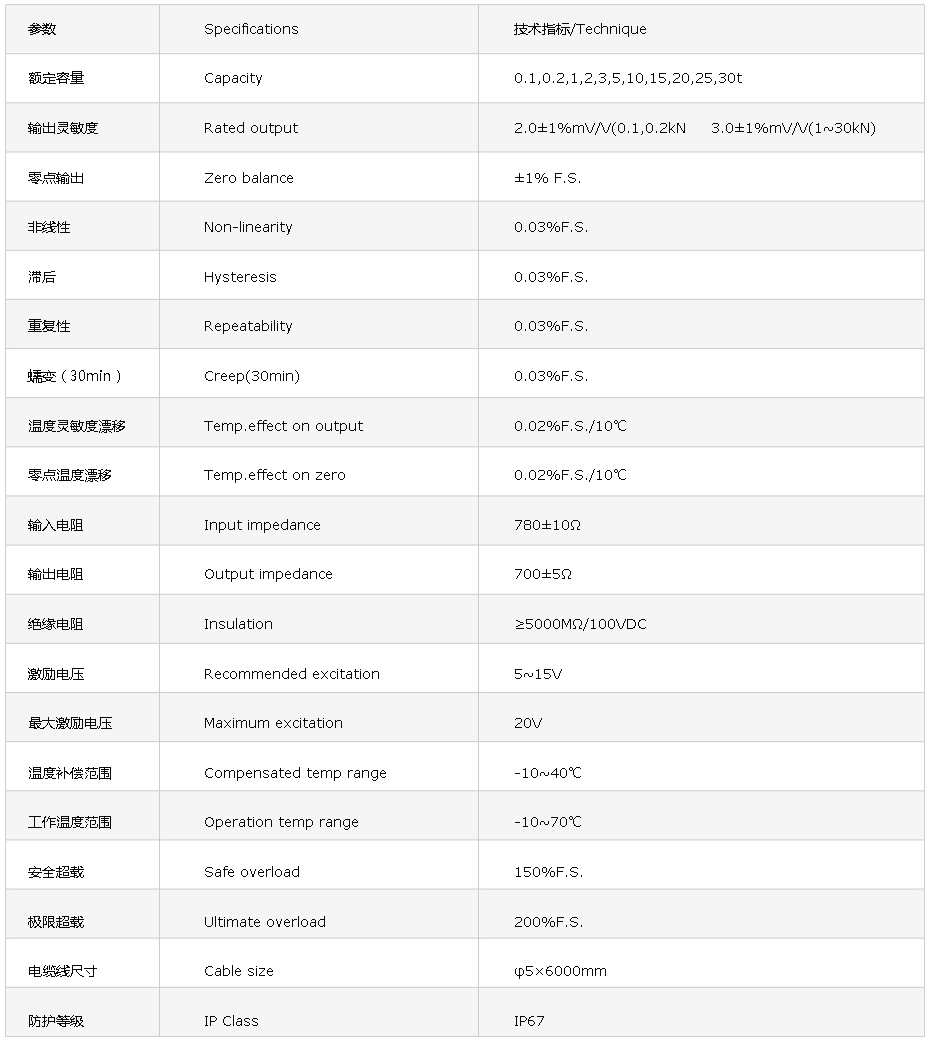

技术参数
SPECIFICATIONS

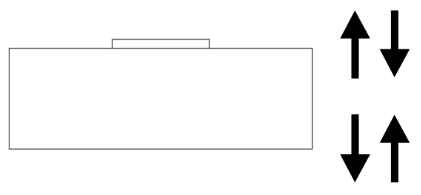

受力方式
LOAD DRIRECTION

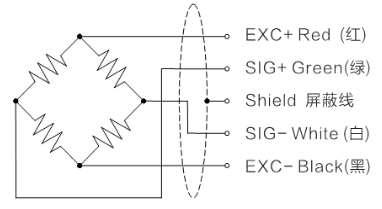

配线图
WIRING CODE
