RET908B

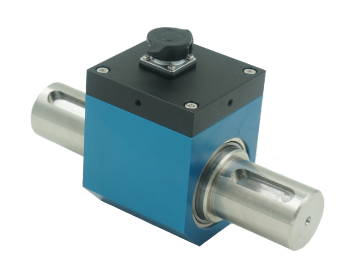

产品图片
PRODUCT IMAGE

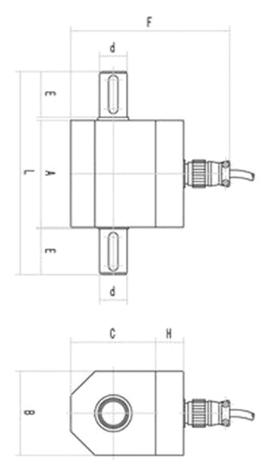

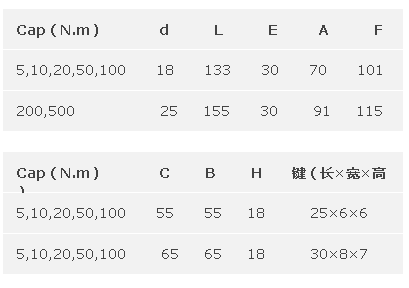

安装尺寸
MOUTING DIMENSION


特点与用途
FEATURES & APPLICATIONS
  • 电阻应变为敏感元件和集成电路构成的一体产品;

  • 精度高,性能稳定可靠;

  • 没有集流环等磨损件,可高速长时间运转,输出正反转扭矩信号;

  • 两端均为键连接;

  • 转速可选,最高8000转/分钟

  • The resistance strain is an integrated product consisting of
    ensitive components and integrated circuits;

  • High accuracy, stable and reliable performance;

  • No slip ring wear parts,high-speed running for a long time,the
    positive signal output torque;

  • Both ends are keyed;

  • Optional speed,maximum 8000 rpm/mim.

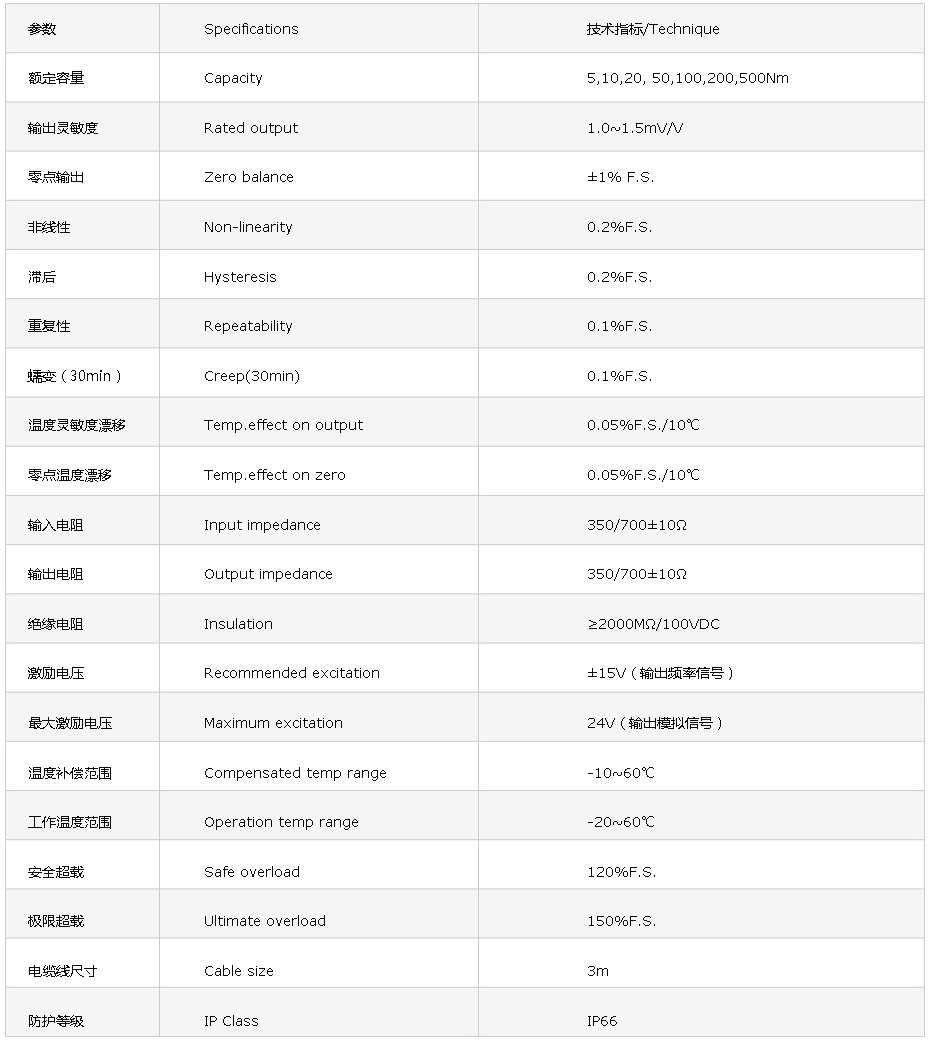

技术参数
SPECIFICATIONS

2

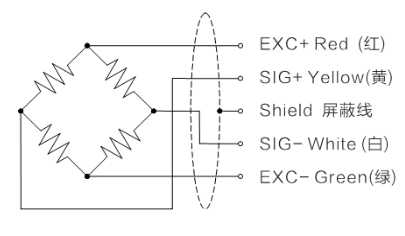

配线图
WIRING CODE
